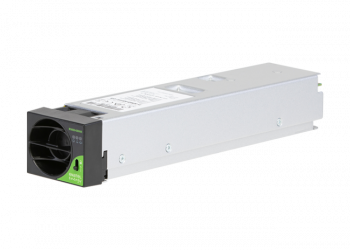

800W 48V | Rectifier | RM848HE

800W 48V | Rectifier | RM848HE

As one of our most popular modules, the micro rectifier is a proven performer. It has an outstanding record in some of the world’s most demanding environments.

Key Features & Benefits

  • High Efficiency energy saving
  • Universal AC input with metering
  • Forced-air cooled & thermally protected
  • Power factor corrected
enquire about this product

RM848HE Specifications

ModelRM848HE 110VRM848HE 230V
Nominal Input Voltage:110V AC230V AC
Input Voltage Range:85-175V AC (reduced power below 100V AC)85-300V AC (reduced power below 175V AC)
Power Factor:> 0.99> 0.99
Peak Efficiency>93.0%>95.0% (>94.5% @ >40% output power)
Nominal Output Voltage:48V DC48V DC
Output Voltage Range:43-60V DC43-60V DC
Maximum Output Current:12.5A17.9A
Maximum Output Power600W860W
Ambient Temperature-20°C to +75 °C (maximum output power is derated above 45 °C)-20°C to +75 °C (maximum output power is derated above 45 °C)
Dimensions (W, H, D)55.0mm, 44.45mm (1U), 260.0mm (rack depth 245.0mm)55.0mm, 44.45mm (1U), 260.0mm (rack depth 245.0mm)
Cooling:Forced-air cooled (front to back airflowForced-air cooled (front to back airflow

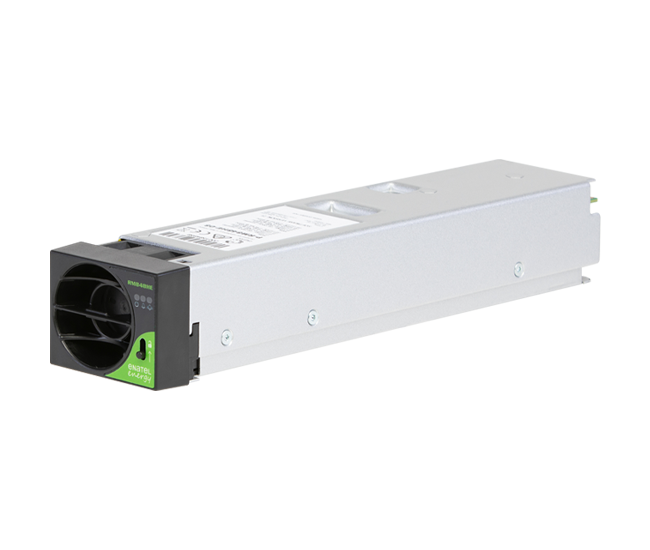

RM848HE Rectifier

If power density, efficiency and reliability are required, the RM848HE  rectifier is just right for the job.

The building block of the microCOMPACT series, this modular rackmounted rectifier boasts integrated AC metering, a robust universal
AC input, high efficiency and a quality high power DC output. And it’s fully backwards compatible, making the expansion or updating of
installed microCOMPACTs completely seamless.

But it’s tough too. Built to exacting New Zealand manufacturing and process integrity standards, the RM848HE maximises reliability based on a proven conversion topology that uses only the highest specification components. Designed to meet the energy demands of ICT applications and growing telecommunications networks, where it can offer unrivalled power densities and flexibility, it’s been built to last.

This rectifier allows for the mounting of up to three power modules, a smart controller and DC distribution all in a 1RU x 19” front connect system supporting ETSI 300 deep enclosures, while its ‘plug and play’ design means installation and performance are unsurpassed
