enatel energy

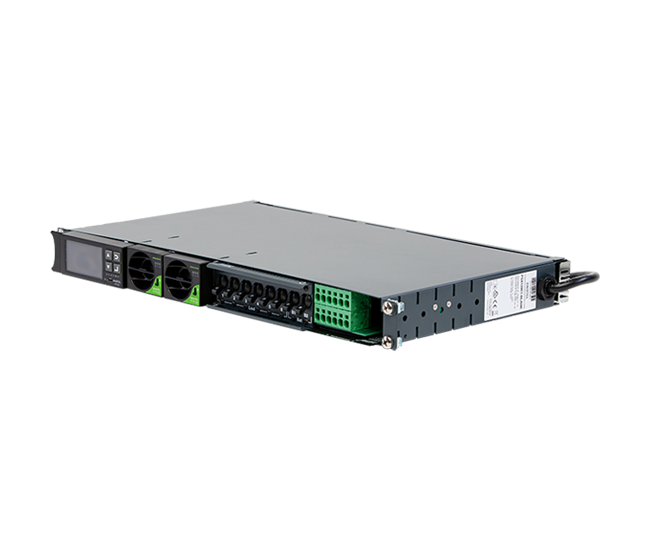

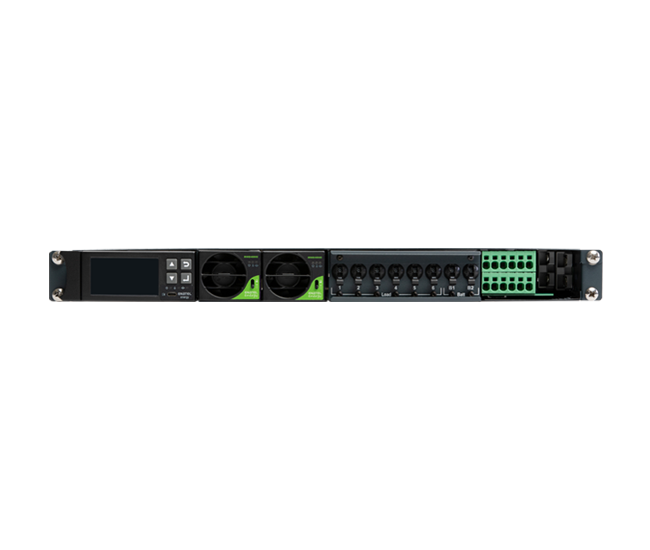

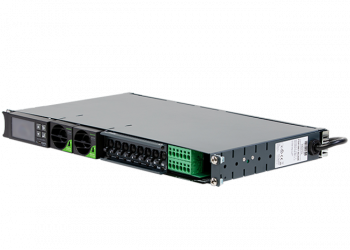

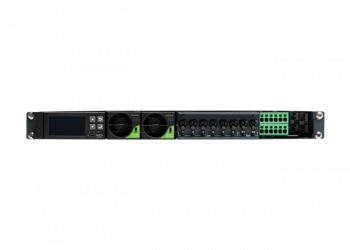

microCOMPACT – DC Power System
PSX12 PXS13 PSX16 PSX24

enatel energy

microCOMPACT – DC Power System
PSX12 PXS13 PSX16 PSX24

Specifications Top

Key Features & Benefits

  • Micro compact design means more rack space
  • World leading power density
  • Modular telecom grade rectifiers
enquire about this product

microCOMPACT

Small and Powerful

With a leading combination of power density and reliability, our microCompacts maximize customer space for revenue-generating equipment, with front connect for ease of installation and maintainability.

ModelPSX16 V2PSX24 V2PSX24 V3
Termination:2.5mm² 3core cable2.5mm² 3core cable2.5mm² 3core cable
DC Output
Nominal Voltage:		48V DC48V DC48V DC
DC Output
Max Output Power		1.6 kW2.4kW2.4KW
DC Distribution6x load circuit breakers (6–30A)
2x battery circuit breakers (max 30A)
4x load circuit breakers (6–30A)
2x battery circuit breakers (max 30A)		6x load GMT fuses (1–15A)
2x battery GMT fuses (2x parallel
pairs,1–30A)
Breaker Fail Detection:Electronic fail detectionElectronic fail detectionElectronic fail detection
DC Terminals: Loads:6mm² push-in spring cage6mm² push-in spring cage6mm² push-in spring cage
Front Connected: Battery:50A power-pole plug-in connectors50A power-pole plug-in connectors50A power-pole plug-in connectors
LVD:80A magnetically latching battery LVD80A magnetically latching battery LVD80A magnetically latching battery LVD
Ambient Temperature:-20ºC to +70ºC (maximum output power is derated above +50ºC)-20ºC to +70ºC (maximum output power is derated above +50ºC)-20ºC to +70ºC (maximum output power is derated above +50ºC)
Dimensions (W, H, D):482.6mm (19” mount), 44.45mm (1U), 285.0mm482.6mm (19” mount), 44.45mm (1U), 285.0mm482.6mm (19” mount), 44.45mm (1U), 285.0mm
Weight:5.0kg (excluding rectifier modules)5.0kg (excluding rectifier modules)5.0kg (excluding rectifier modules)

Small and Powerful

Enatel’s microCOMPACT power systems range in power output from 1.6kW to 2.4kW and have a maximum output current of 50A.

They are the ideal solution to meet the requirements of telecommunications applications such as access nodes, DAS requirements and micro/pico base stations.

The microCOMPACT range was designed with the installer in mind, giving true front-connect for DC outputs and pull-out tray monitor for ease of alarm-cabling installation.

With a leading combination of power density and reliability, our microCompacts maximize customer space for revenue-generating equipment, with front connect for ease of installation and maintenance.

Configured to your Requirements

Utilizing Enatel’s intelligent controllers and modular rectifiers, our standalone 1U microCOMPACT DC power systems have been designed to be easily installed in any standard 19” rack or ETSI 515mm/300mm deep rack and can be configured to meet the individual requirements of each customer.

Smart rectifier design allows the RM648/RM848 rectifiers to measure and report AC input voltage to the system supervisory module, without the need for additional hardware.

New Zealand-made to guarantee design, manufacture and process integrity, our robust, proven conversion topology utilizes only the highest specification components, ensuring unparalleled reliability benefits.
