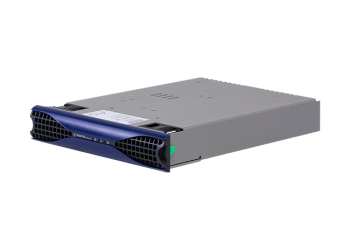

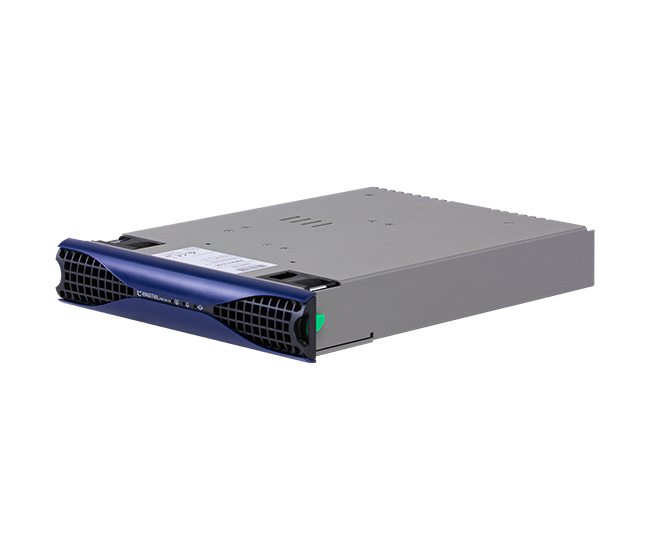

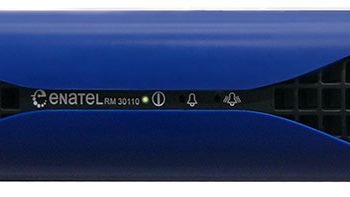

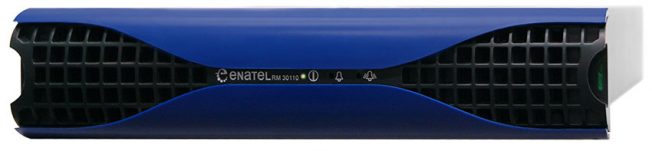

3kW 110V | Rectifier | RM30110

3kW 110V | Rectifier | RM30110

Delivers significant reliability benefits over prevalent ferro type chargers due to our advanced modular, scalable and redundant architecture.

Efficient and reliable, these rack-mount rectifiers allow for easy paralleling of modules to provide redundancy or higher power outputs. They represent the ideal battery charging solution for industrial applications including utility protection and control equipment.

A multitude of mounting options enables custom and configurable systems tailored to individual customer requirements. Its ‘plug and play’ allows quick and easy installation and system expansion as necessary.



Key Features & Benefits

  • Input/output voltage and current protected
  • Power factor corrected
  • Microprocessor controlled
enquire about this product

3 kW 110V Rectifier Specifications

Nominal Input Voltage:230V AC
Input Voltage Range:90-300V AC
Power Factor:>0.99
Peak Efficiency:>92.0%
Nominal Output Voltage110V DC
Output Voltage Range:80–155V DC
Maximum Output Current:27.3A
Maximum Output Power:3.0kW
Ambient Temperature:-20ºC to +70ºC (maximum output power is derated above 55ºC)
Dimensions (W, H, D):220.0mm, 44.45mm (1U), 305.0mm (rack depth 283.0mm)
Weight:2.8kg
Cooling:Forced-air cooled (front to back airflow)
