Solar Converters

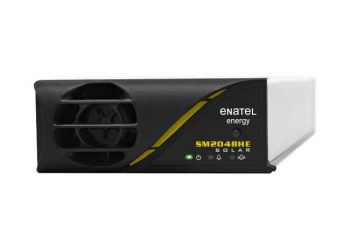

Solar Converters

With peak efficiency near 98%, our high efficiency solar converter provides significant energy savings. Standalone or system integrated, these modules uniquely deliver added peace-of-mind and security with their galvanic isolation and earth leak protection. A wide input operating voltage provides PV flexibility and optimization.

Key Features & Benefits

  • Industry-leading MPPT for the greatest solar harvesting
  • Widest range of DC input for maximum PV flexibility
  • Lowers OPEX by up to 80%
  • Modular architecture for quick and easy system integration/expansion
enquire about this product

Solar Series Converter Specifications

Nominal Input Voltage:230V DC100V DC
Input Voltage Range85–400V (200–360V DC non-derating output power)60–140V (limited to 17A input)
Start-up Voltage:120V DC60V DC
Maximum Open Circuit Voltage:450V DC160V DC
Maximum Input Current:10.5A18A
MPPT Efficiency:98.5%98.5%
Peak Efficiency:>97% @ 20–85% load with 200-250V DC input>96% @ 25–70% load with 85-100V DC input
Nominal Output Voltage48V DC48V DC
Output Voltage Range:43-60V DC43-60V DC
Maximum Output Current:41.7A37.5A
Maximum Output Power:2.0kW1.8kW
Ambient Temperature:: -20ºC to +70ºC (maximum output power is derated above 55ºC): -20ºC to +70ºC (maximum output power is derated above 55ºC)
Storage Temperature:-30ºC to +85ºC-30ºC to +85ºC
Dimensions (W, H, D):111.5mm, 44.0mm (1U), 282.0mm overall (rack depth 260.0mm)111.5mm, 44.0mm (1U), 282.0mm overall (rack depth 260.0mm)
Cooling:Forced-air cooled (front to back airflow)Forced-air cooled (front to back airflow)

With peak efficiency near 98%, the Solar Series high-efficiency Solar Charger provides significant energy savings. Each charging module is designed for operation with solar panel configurations of one or two strings and, with a wide input operating voltage window, offers maximum flexibility for the greatest optimization.

Module design is based on a high-frequency transformer guaranteeing galvanic isolation between that of solar panels and loads and batteries. Various additional protection elements ensure safety and investment preservation.

The Solar Series chargers include market leading MPPT algorithms, allowing commencement of solar harvesting far sooner and for much longer than other comparative devices. This combined with the highest conversion efficiency maximizes PV generation delivering the greatest ROI.

Enatel’s solar chargers are New Zealand-made to guarantee design, manufacture and process integrity. The Solar Series represents unrivalled reliability with a robust proven conversion topology. Modules can be integrated into COMPACT solutions or operate as standalone units.
