Wind Converters

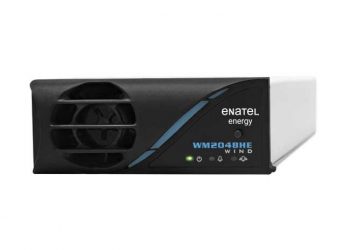

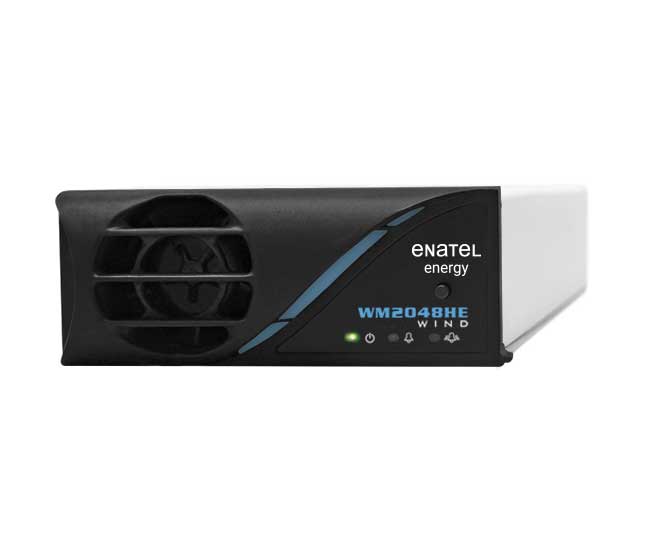

WM2048HE

Wind Converters
WM2048HE

Our wind converter shares the same robust topology and performance delivered by our solar charger. The difference is how it intelligently determines optimal power draw so as not to overload a range of compatible HV wind turbines, as high efficiency in combination with elevated DC voltages significantly reduces copper losses and cost.

Key Features & Benefits

  • Highest efficiency conversion, more than 97%
  • Widest range of DC input for greater flexibility
  • Lowers OPEX by up to 80%
  • Modular architecture for quick and easy system integration/expansion
enquire about this product

Wind Series Converter Specifications

Nominal Input Voltage:220V DC
Input Voltage Range:85–400V (200–360V DC non-derating output power)
Maximum Open Circuit Voltage:120V DC
Peak Efficiency:>97% @ 20–85% load with 200–250V DC input
Nominal Output Voltage:48V DC
Output Voltage Range:43-60V DC
Maximum Output Current:41.7A
Maximum Output Power:2.0kW
Ambient Temperature:-20ºC to +70ºC (maximum output power is derated above 55ºC)
Storage Temperature:-30ºC to +85ºC
Dimensions (W, H, D):111.5mm, 44.0mm (1U), 282.0mm (rack depth 260.0mm)
Weight:1.50kg
Cooling:Forced-air cooled (front to back airflow)

With peak efficiency near 98%, Enatel’s WM2048HE high-efficiency Wind Charger  provides significant energy savings.

Each charging module is designed for operation with a high-voltage wind turbine and  with a wide input operating voltage window, offers maximum flexibility for the greatest optimization. High voltage turbines offer superior performance with fewer losses than low voltage alternatives.

The WM2048HE allows rapid wind harvesting against varying wind speeds by using an embedded look-up table to intelligently determine the optimal power levels and avoid overload. This combined with the highest conversion efficiency maximizes wind power generation, delivering the greatest ROI.

Enatel’s wind chargers are New Zealand-made to guarantee design, manufacture and process integrity. The WM2048HE represents unrivalled reliability with a robust proven conversion topology.  Modules can be integrated into COMPACT solutions or operate as standalone units.
