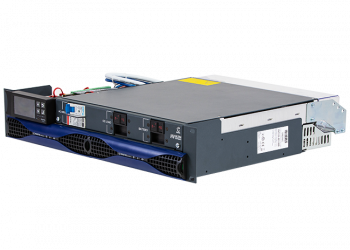

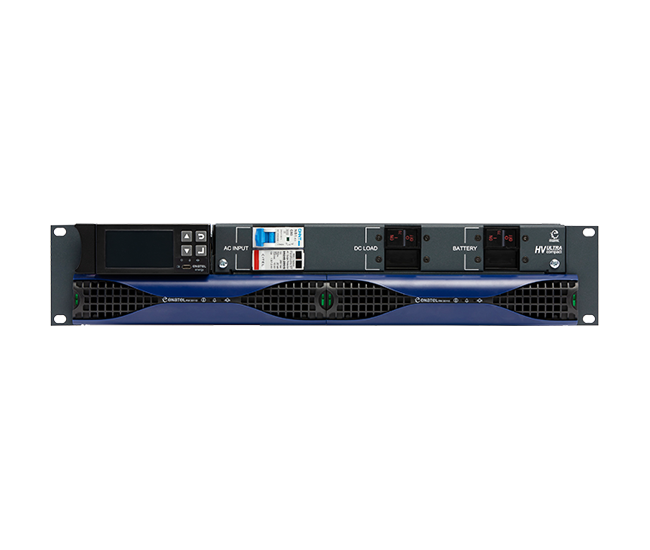

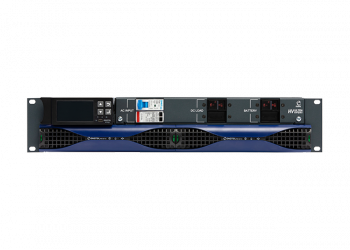

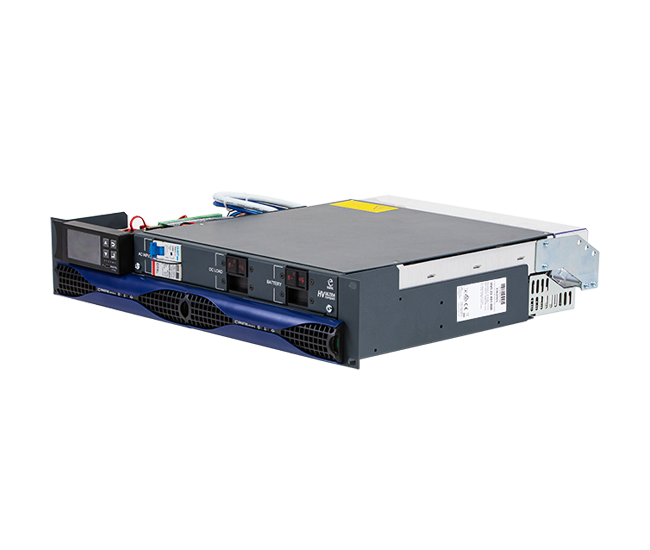

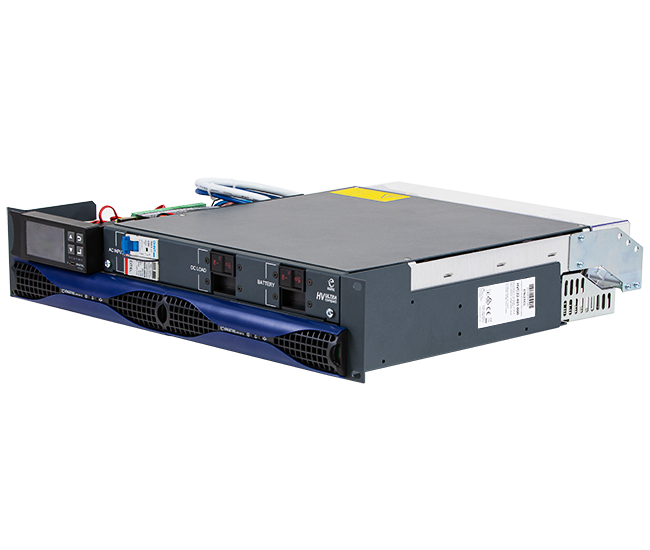

HV COMPACT | DC Power System | HVC22

HV COMPACT | DC Power System | HVC22

Key Features & Benefits

  • World leading power density
  • Fully featured industrial grade rectifiers
  • Hot-swappable rectifiers for no break operation under load
  • Easily customized and configured to suit each customer’s individual needs
enquire about this product

HV COMPACT Specifications

Model No:HVC22
AC Input:Single phase (refer to rectifier specifications)
Termination:Rear access terminals
DC Output
Nominal Voltage
110V DC
DC Output
Max Output Power
6kW
PolarityIsolated O/P
DC Distribution Loads1x 70A 2 pole MCB, (breaks +ve & -ve)
DC Distribution Battery1x 70A 2 pole MCB, (breaks +ve & -ve)
Breaker Fail Detection:Auxiliary breaker
DC Terminals Loads/Battery35mm² tunnel terminals
LVD:80A magnetically latching battery LVD
EARTH LEAKAGE DETECTION – PCB:Yes
Dimensions (W, H, D):482.6mm (19” mount), 88.9mm, 350.0mm (2U)
Weight:7.0kg (excluding rectifier modules)
Ambient Temperature:-20ºC to +70ºC (maximum output power is derated above +50ºC)
Safety ComplianceEN60950
Safety ComplianceCE & RoHS compliant

A Reliable Compact Solution

From Enatel’s high voltage series of industrial power systems comes the HV COMPACT , with an output of up to 12.0kW and a maximum current of 109A. The ideal battery charging solution for utility protection and control equipment, all within 2U and 5U 19” rack mountable power shelves, which can be configured to individual customer requirements.

Keep Data and Product Moving

The HV COMPACT uses Enatel’s state-of-the-art high-frequency switch-mode rectifier modules and intelligent network capable controllers in power shelves that include built-in load and battery distribution, AC input isolation and surge suppression.

New Zealand-made to guarantee design, manufacture and process integrity, our robust, proven conversion topology utilizes only the highest specification components, ensuring unparalleled reliability benefits.
