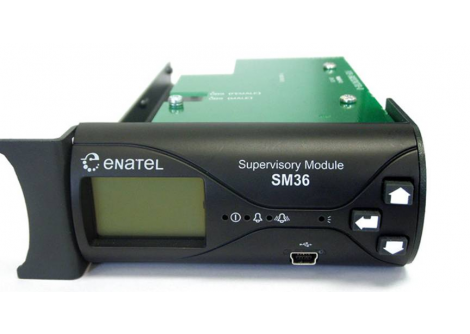

The SM3X range of microcontroller supervisory modules provide the control and monitoring functions for the Enatel RM Series rectifiers, CM Series DC/DC converters and IM Series inverters.
The SM3X monitors all power system conditions including DC voltage, rectifier current, battery current, battery temperature and distribution failure. Visual notifications of alarm conditions are given by LEDs and a 4 line x 16 character alpha numeric LCD, with remote notification being enabled by relay contacts or TCP/IP (using SNMP).
It has a built-in web-based configurator allowing setup of system parameters using a web browser. The SM3X range utilizes a USB communications port which allows for local monitoring of system operations as well as easy downloading of configuration files for multiple site installations.
