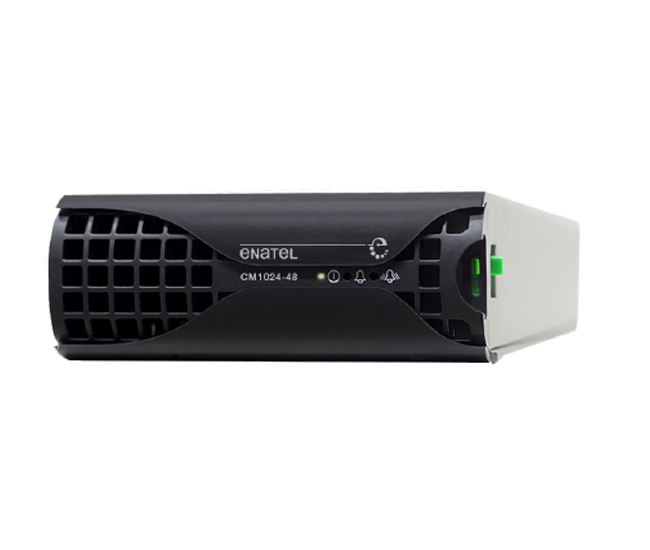

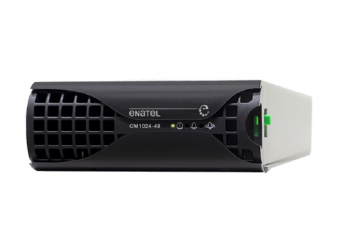

CM Series Converter LV (<1500W)

CM Series Converter LV (<1500W)

Efficient and reliable, these modular rack mount DC DC converters allow for easy paralleling of modules to provide redundancy or higher power outputs. Designed for use in modern telecommunication networks and industrial applications, these converters offer unrivalled performance.

Key Features & Benefits

  • Forced-air cooled by a temperature controlled, high-reliability, monitored fan
  • Input/output voltage and current protected
  • Microprocessor controlled
enquire about this product

CM Series Converter Specifications

ModelCM612-24CM1024-48CM612-48CM1024-24
Nominal Input Voltage:24V DC48V DC48V DC24V DC
Voltage Input Range:20–30V DC40–60V DC40-60V DC20-30V
Nominal Output Voltage:12V DC24V DC12V DC48V DC
Output Voltage Range:10.5-15V DC22–26V DC10.5-15V DC46-52V DC
Maximum Output Current:40A43.0A40A21.6A
Maximum Output Power:560W1040W560W1040W
Peak Efficiency:90.32%93.9393.00%92.31%
Environmental Requirements-20ºC to 70ºC [-4ºF to 158ºF]-20ºC to 70ºC [-4ºF to 158ºF]-20ºC to 70ºC [-4ºF to 158ºF]-20ºC to 70ºC [-4ºF to 158ºF]
Storage Temparature-30ºC to 85ºC [-22ºF to 185ºF]-30ºC to 85ºC [-22ºF to 185ºF]-30ºC to 85ºC [-22ºF to 185ºF]-30ºC to 85ºC [-22ºF to 185ºF]
Dimensions WW: 111.5 mm [4.39 in]W: 111.5 mm [4.39 in]W: 111.5 mm [4.39 in]W: 111.5 mm [4.39 in]
Dimensions HH: 44.0 mm [1.73 in] (1U)H: 44.0 mm [1.73 in] (1U)H: 44.0 mm [1.73 in] (1U)H: 44.0 mm [1.73 in] (1U)
Dimensions DD: 282.0 mm [11.1 in] overallD: 282.0 mm [11.1 in] overallD: 282.0 mm [11.1 in] overallD: 282.0 mm [11.1 in] overall
Weight1.50 kg [3.31 lb]1.50 kg [3.31 lb]1.50 kg [3.31 lb]1.50 kg [3.31 lb]
Safety:EN 60950-1EN 60950-1EN 60950-1EN 60950-1
Immunity:CISPR24CISPR24CISPR24CISPR24
Emissions:CISPR22 Class BCISPR22 Class BCISPR22 Class BCISPR22 Class B
Other:CE & RoHS CompliantCE & RoHS CompliantCE & RoHS CompliantCE & RoHS Compliant

DC DC conversion

The design allows for mounting four modules in a 1U x 19” rack or integrated within our COMPACT systems: Enatel’s Energy Manager can be used for system-level monitoring and control, or it can operate as a standalone unit. These converters can be configured in combinations to provide multiple voltage outputs, filtering and isolation.

The CM Series ‘plug and play’ ability allows quick and easy installation and system expansion. These robust, reliable converters are forced-air cooled and automatically return to normal operation following abnormal events.

Modules are New Zealand-made to guarantee design, manufacture and process integrity. Our robust, proven conversion topology utilizes only the highest specification components – something rarely offered by others.
