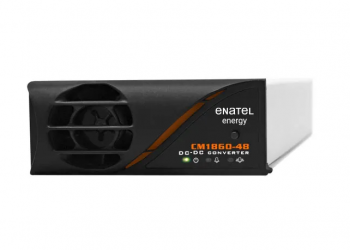

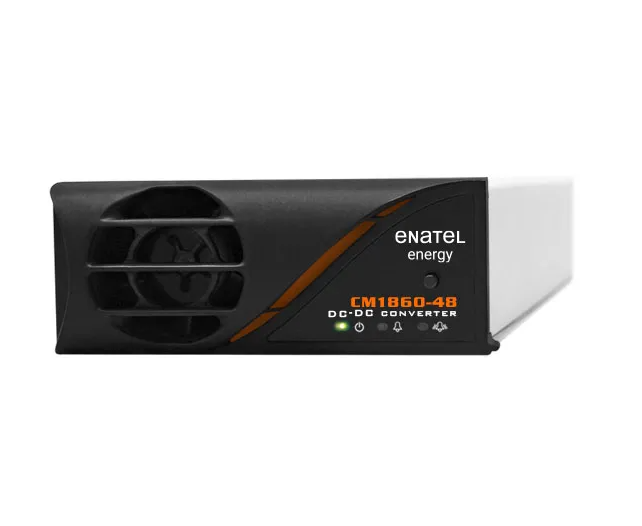

CM Series Converter LV (>1500W)

CM Series Converter LV (>1500W)

Efficient and reliable, these modular rack mount DC-DC converters allow for easy paralleling of modules to provide redundancy or higher power outputs. Designed for use in modern telecommunication networks and industrial applications, these converters offer unrivaled performance.

Key Features & Benefits

  • Forced-air cooled by a temperature controlled, high-reliability, monitored fan
  • Input/output voltage and current protected
  • Microprocessor controlled
enquire about this product

CM Series Converter (>1500W) Specifications

ModelCM1748-48CM1860-48
Nominal Input Voltage:48V DC48V DC
Input Voltage Range:40–60V DC43-60V DC
Nominal Output Voltage:48V DC48V DC
Output Voltage Range:48-52V DC54-65V DC
Maximum Output Current:33.0A30.7A
Maximum Output Power:1700W1800W
Peak Efficiency:93.50%92.85%
Ambient Temperature20ºC to 70ºC [-4ºF to 158ºF] (maximum output power is derated above 50ºC [122ºF])20ºC to 70ºC [-4ºF to 158ºF] (maximum output power is derated above 50ºC [122ºF])
Storage Temperature20ºC to 70ºC [-4ºF to 158ºF] (maximum output power is derated above 50ºC [122ºF])20ºC to 70ºC [-4ºF to 158ºF] (maximum output power is derated above 50ºC [122ºF])
DimensionsW: 111.5 mm [4.39 in]W: 111.5 mm [4.39 in]
DimensionsH: 44.0 mm [1.73 in] (1U)H: 44.0 mm [1.73 in] (1U)
DimensionsD: 282.0 mm [11.1 in] overallD: 282.0 mm [11.1 in] overall
Weight1.50 kg [3.31 lb]1.50 kg [3.31 lb]
CoolingForced-air cooled (front to back airflow)Forced-air cooled (front to back airflow)
Safety/CompliancesEN 60950-1EN 60950-1
ImmunityCISPR24CISPR24
EmssionsCISPR22 Class BCISPR22 Class B
Other CompliancesCE & RoHS CompliantCE & RoHS Compliant

The design allows for mounting four modules in a 1U x 19” rack or integrated within our COMPACT systems: Enatel’s Energy Manager can be used for system-level monitoring and control, or it can operate as a standalone unit. These converters can be configured in combinations to provide multiple voltage outputs, filtering and isolation.

The CM Series ‘plug and play’ ability allows quick and easy installation and system expansion. These robust, reliable converters are forced-air cooled and automatically return to normal operation following abnormal events.

Modules are New Zealand-made to guarantee design, manufacture and process integrity. Our robust, proven conversion topology utilizes only the highest specification components – something rarely offered by others.
